ZSW-490×110 Vibrating Grizzly Bar Feeder - Reliable Primary Feeding for Crushing Plants

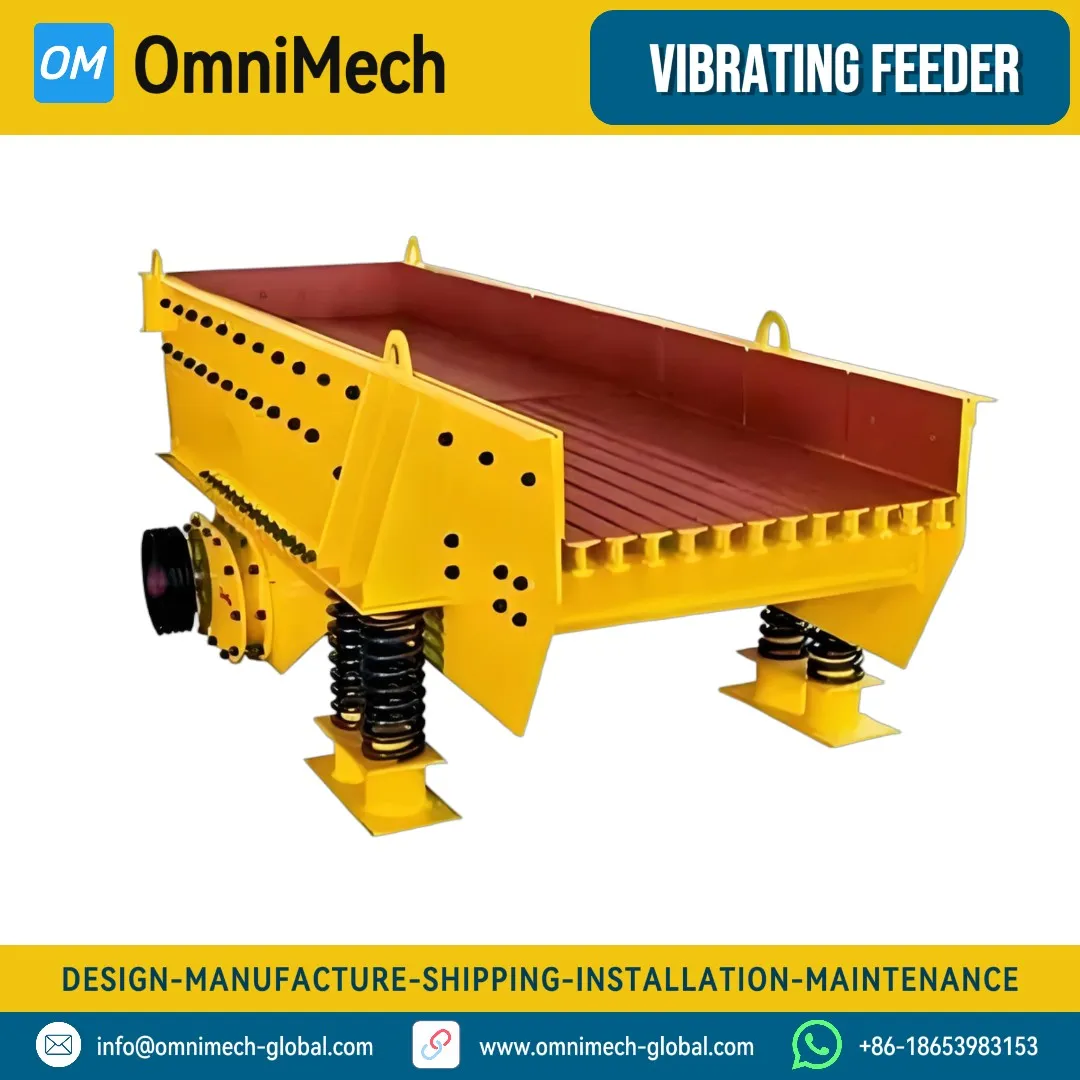

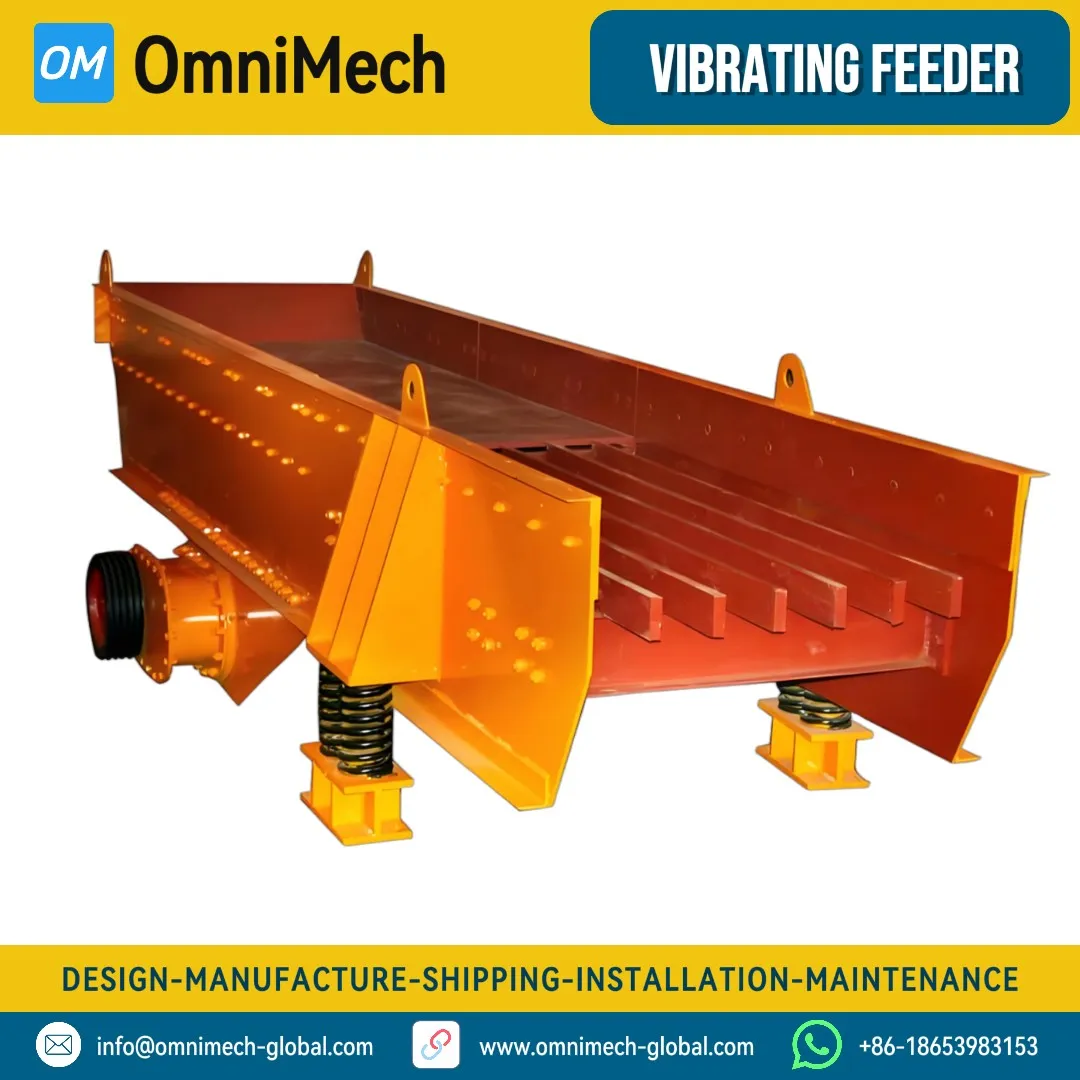

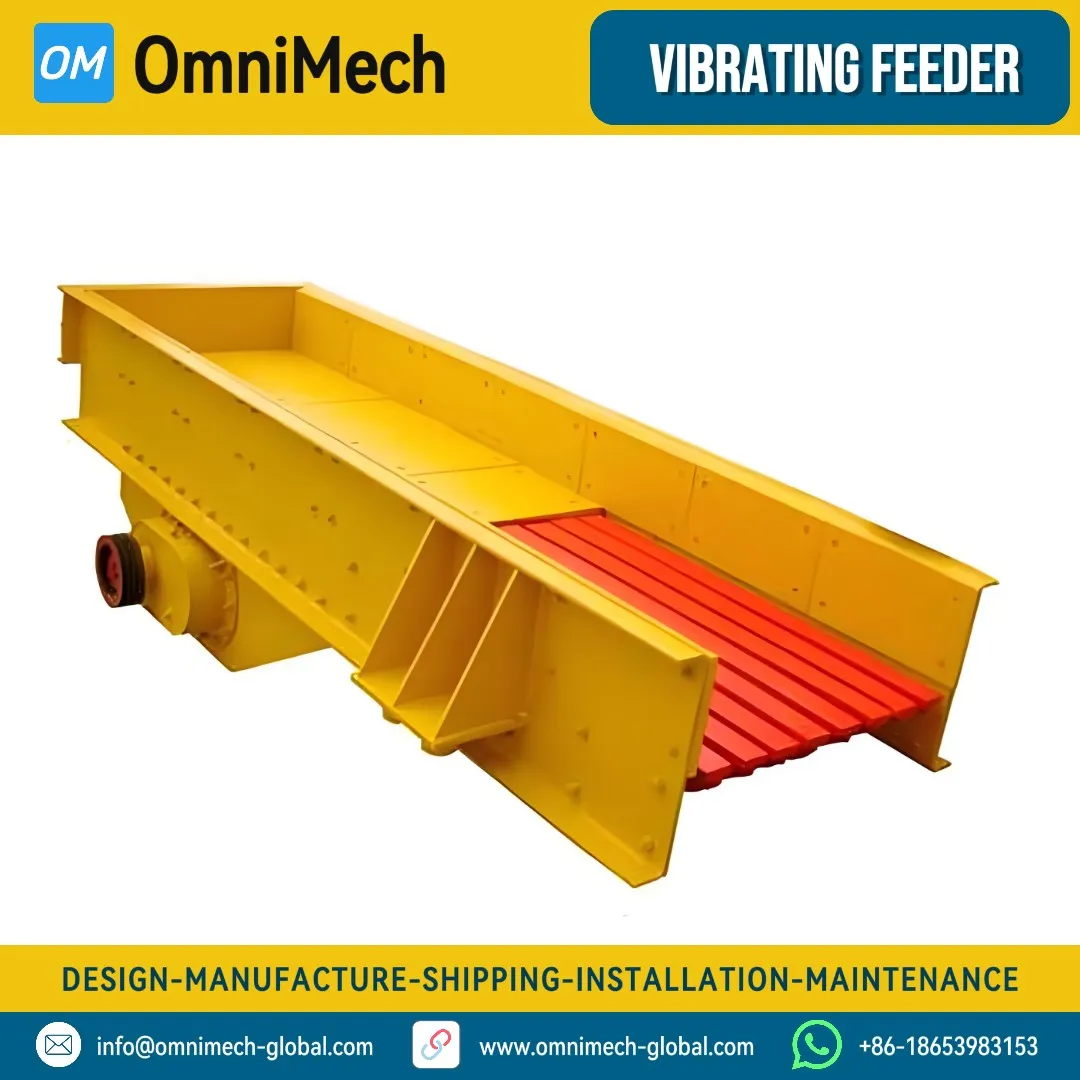

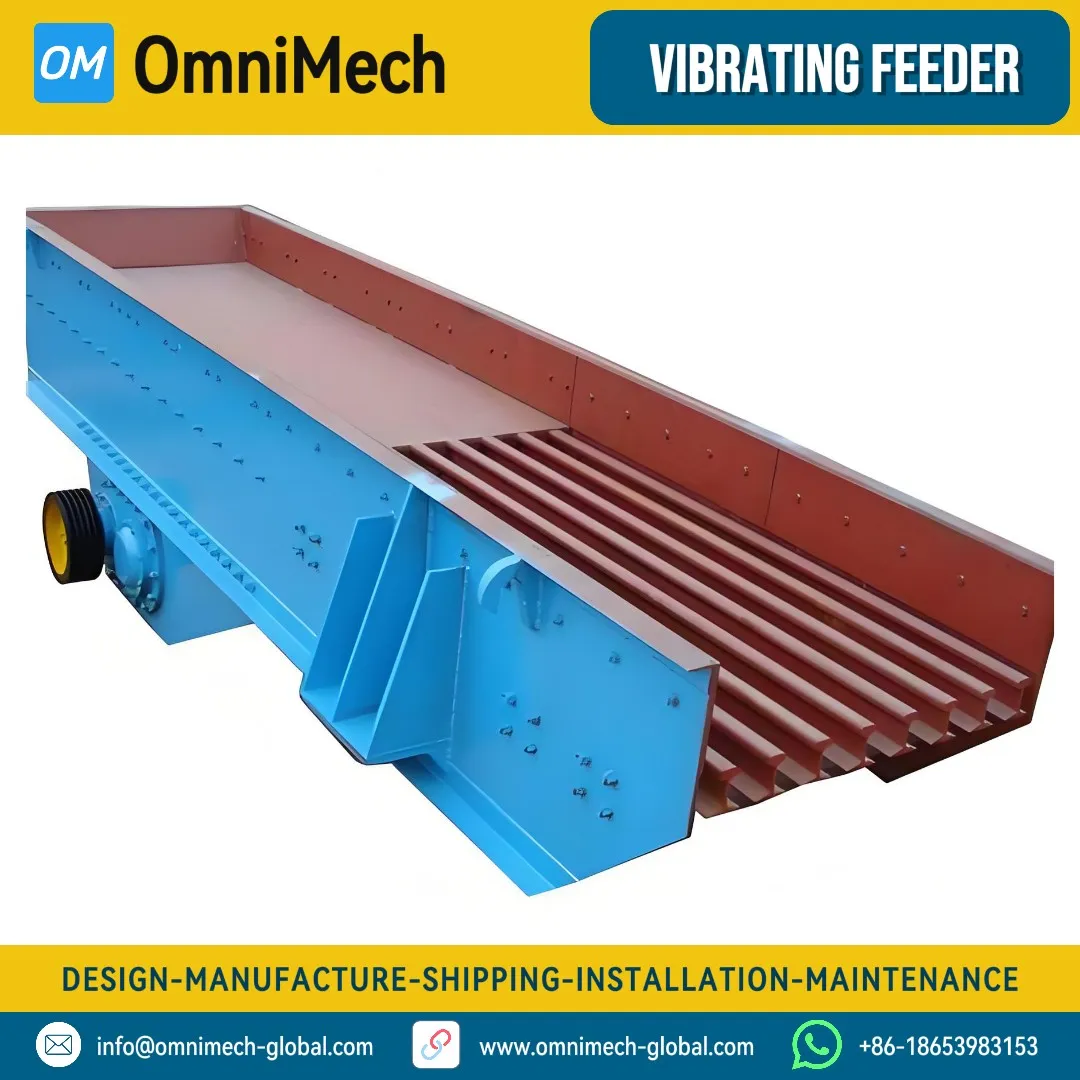

The discharge end of the trough is fitted with an inclined grating made of wear-resistant alloy steel bars. When the vibrating motors drive the trough in high-frequency vibration, material inside moves forward along parabolic trajectories. As material passes over the bar section, fines and dirt smaller than the bar spacing fall through the gaps under the combined action of gravity and vibration, exiting through a separate fines discharge outlet beneath the trough. Oversize material that cannot pass through the bars continues sliding forward along the bar surface and is discharged from the front coarse material outlet into the jaw crusher.

Absolutely. Bar spacing can be flexibly adjusted between 80 mm and 150 mm by swapping spacer blocks of different thicknesses. When selecting the bar gap, we recommend setting it to approximately 1.2 to 1.5 times the Closed Side Setting (CSS) of the downstream jaw crusher. This effectively screens out fines that don't need crushing while ensuring all oversize material that requires reduction enters the crushing chamber, optimizing the entire line's efficiency.

High clay content is a common challenge at many mine sites. The ZSW feeder addresses this through two key mechanisms: first, the grizzly bar pre-screening section removes the majority of muddy fines before material ever enters the crusher, reducing the clay load at the source; second, the high-frequency vibration keeps material in a continuous bouncing state inside the trough, preventing mud from adhering and accumulating on the trough walls and bars. For extremely high-clay conditions, we also offer a customized solution with an integrated high-pressure water spray washing system.

The dual vibrating motor drive offers several significant advantages: First, the two motors rotating synchronously in opposite directions automatically generate a stable, directional linear excitation force without requiring complex gear synchronization mechanisms, greatly simplifying the mechanical structure. Second, the excitation force can be steplessly adjusted by changing the angle between the eccentric weights on each motor end, making it easy to optimize feed rate for different material characteristics on site. Third, if one motor fails, the unit can still operate briefly at reduced capacity, preventing a sudden whole-line shutdown and buying valuable time for emergency repairs.

Under standard operating conditions of 8 to 10 hours per day processing highly abrasive materials like granite or iron ore, premium high-manganese steel trough liners typically last 6 to 10 months, while wear-resistant alloy steel grizzly bars have a replacement cycle of approximately 4 to 8 months. Actual service life depends on material abrasiveness, feed volume, and bar spacing settings. We recommend focusing routine inspections on the lower end of the bars — when wear exceeds 30% of the original bar diameter, they should be replaced or flipped to utilize the unworn side.

The recommended standard installation angle is 0° to 5° (horizontal or slightly inclined downward). A slight downward tilt leverages gravity to assist material flow, which is especially effective when handling large or high-density material. For high-clay materials, the angle can be increased to 5° to 10° to enhance material mobility and prevent sticking. However, the angle should not exceed 15°, as this would cause material to flow too rapidly, making feed rate difficult to control precisely and increasing the impact load on the jaw crusher at the trough discharge end.

Yes, absolutely. We provide a comprehensive 12-month warranty for the ZSW-490×110 vibrating feeder covering the main machine structure and steel trough (excluding consumable wear parts such as trough liners and grizzly bars), protecting against structural failures caused by manufacturing defects or material quality issues, backed by full remote technical support and genuine OEM parts availability.
