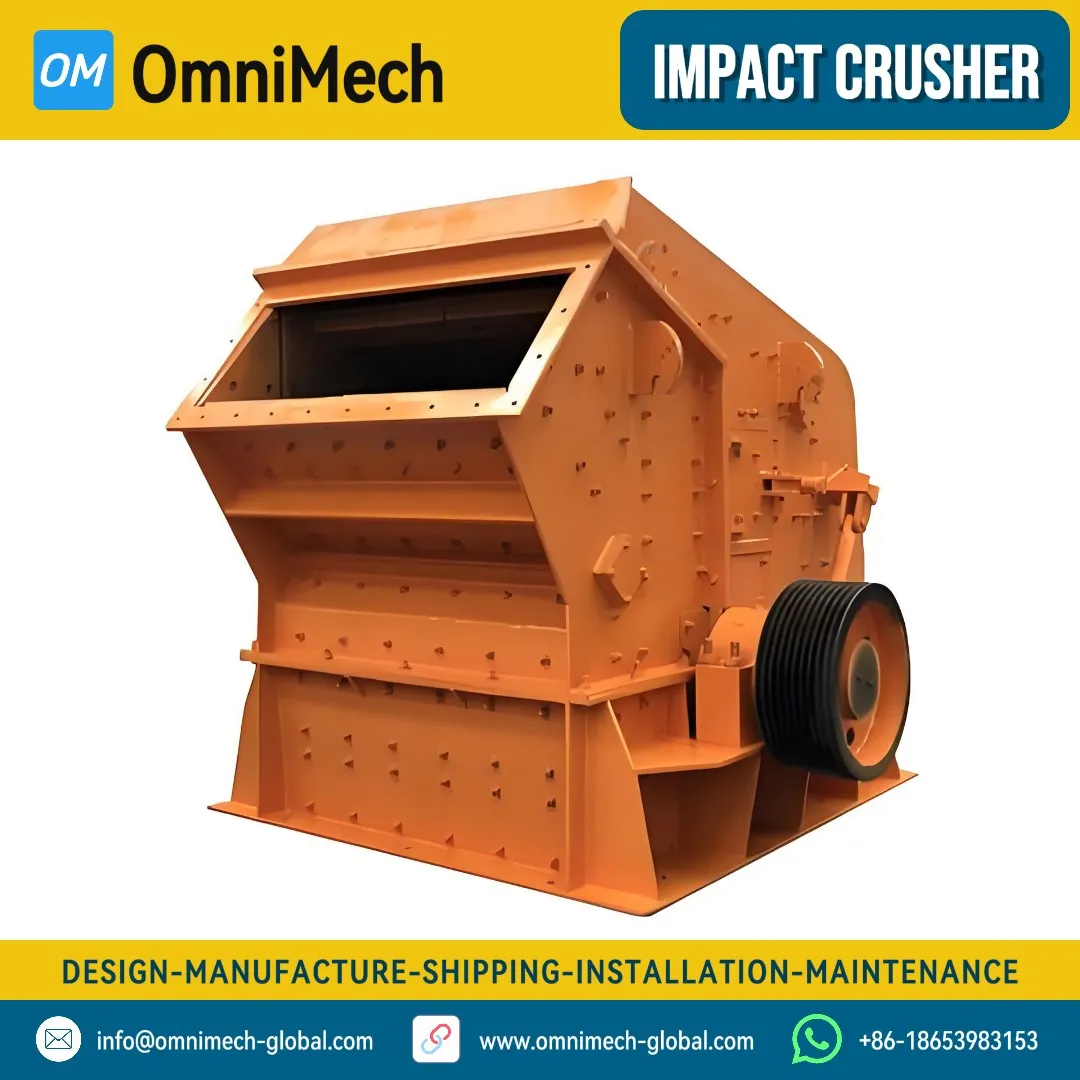

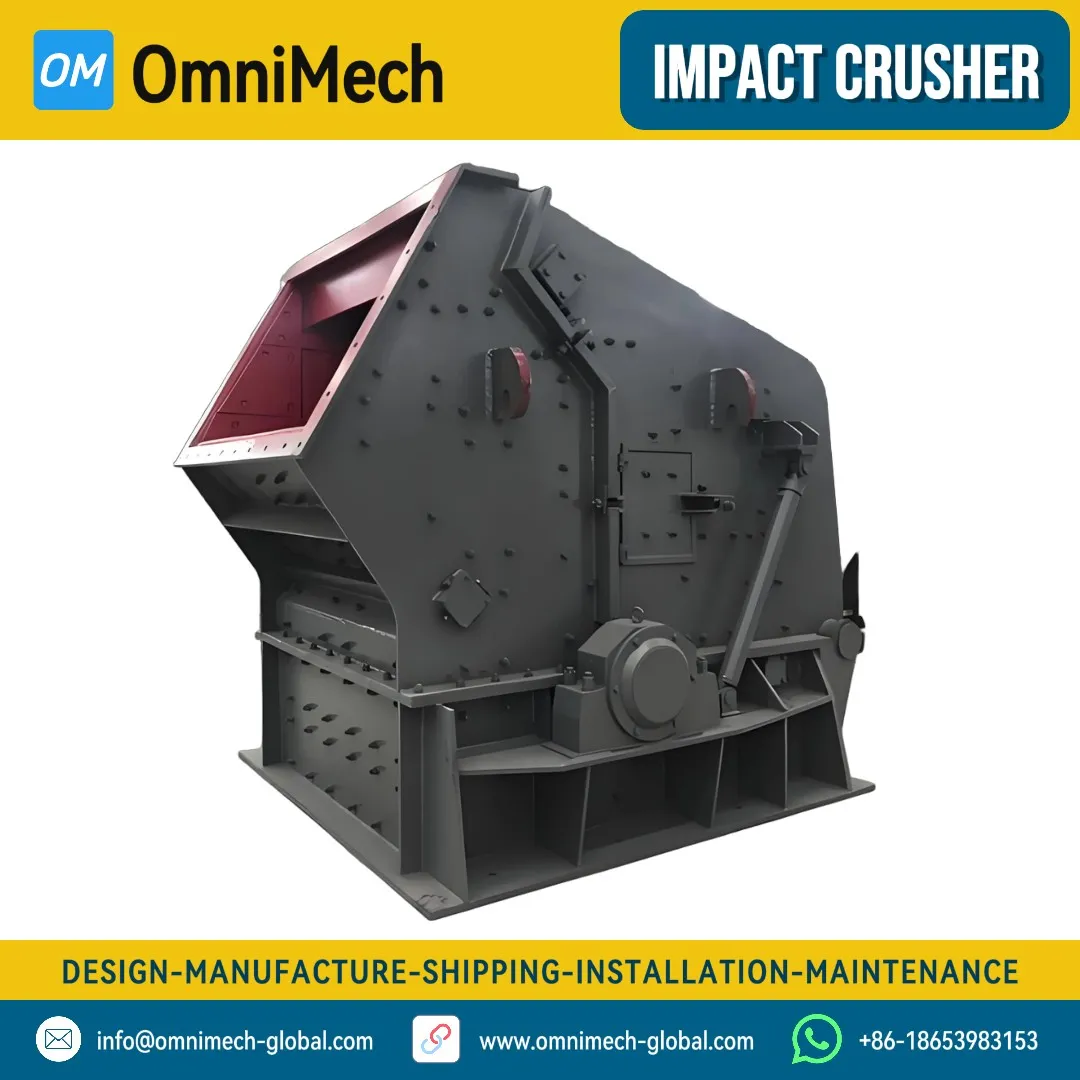

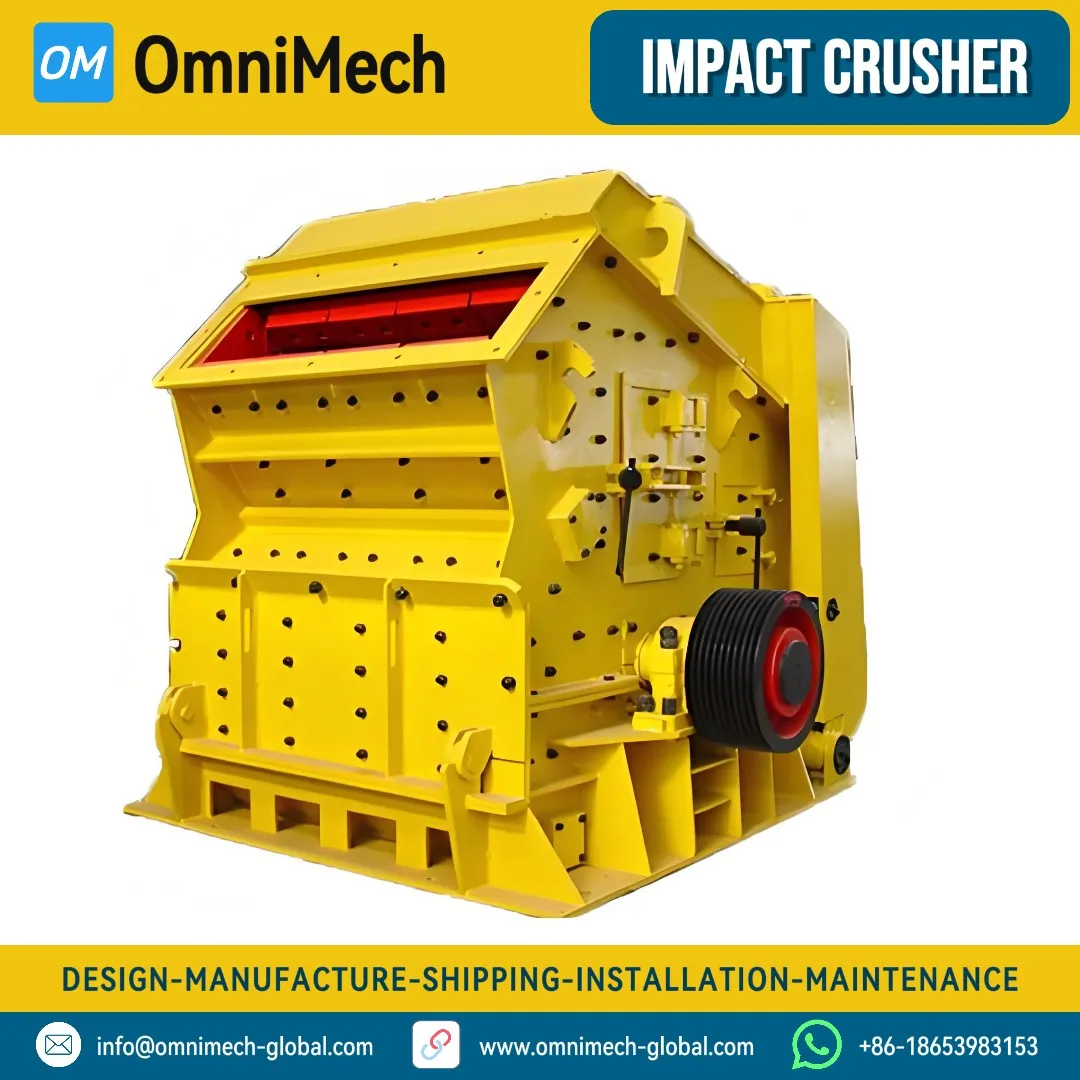

PF1214 Horizontal Shaft Impact Crusher for Stone and Rock Crushing
The PF1214 Impact Crusher (Horizontal Shaft Impact Crusher) is engineered for secondary and tertiary crushing of soft to medium-hard materials, such as limestone, gypsum, concrete, and dolomite. With a rotor size of ∅1200 x 1400mm, this machine is widely recognized for its high production capacity, large reduction ratio, and exceptional energy efficiency.
Capacity
70-180 t/h
Weight
18,600 kg
Power
132 kW
Feed Opening
755×1440 mm
Key Features:
- Superior Cubical Product Shape
- High-Chromium Blow Bars for Extended Lifespan
- Heavy-Duty Solid Rotor Design
- No-Key Connection for Easy Maintenance
- Adjustable Impact Plates for Flexible Output
- Easy maintenance access
- Low operating cost
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PF1214 |
| Feed Opening Size | 755 × 1440 mm |
| Max. Feeding Size | 140 mm |
| Discharging Size | 40-90 mm |
| Capacity | 70-180 t/h |
| Motor Power | 132 kW |
| Weight | 18,600 kg |
| Overall Dimensions | 3545 × 2462 × 2640 mm |
Product Description
The PF1214 Impact Crusher (Horizontal Shaft Impact Crusher) is engineered for secondary and tertiary crushing of soft to medium-hard materials, such as limestone, gypsum, concrete, and dolomite. With a rotor size of ∅1200 x 1400 mm, this machine is widely recognized for its high production capacity, large reduction ratio, and exceptional energy efficiency.
Unlike compression crushers, the PF1214 utilizes impact energy to shatter materials, resulting in a highly consistent, cubical final product shape with minimal elongated particles—making it the definitive choice for producing high-quality aggregates for highways, high-speed railways, and concrete mixing plants.
Need High-Performance Crushing Equipment or Quality Replacement Parts? We offer factory-direct PF1214 impact crushers as well as premium aftermarket wear parts—including High-Chrome Blow Bars, Impact Plates, and Side Liners customized to fit your specific operational needs.
👉 Request a Free Quote & Catalog Get in touch with our engineering team today for competitive pricing and customized aggregate solutions!
