Concave / Bowl Liner for GP Series Cone Crusher
Heavy-duty concave liners designed for GP crushers to ensure consistent output and maximum tonnage throughput.
Type
Cone Crusher Parts
Category
Cone Crusher Parts
Tags
GP Series Parts, Concave, Bowl Liner
Key Features:
- Advanced Mn18Cr2 and Mn22Cr2 metallurgy for high abrasive resistance
- Optimized profiles matching standard and short-head GP configurations
- Computer-modeled design for even wear distribution
- Excellent performance consistency across all cavities
- Reduced maintenance and extended service life
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Mn18Cr2 / Mn22Cr2 |
| Cavity Type | EF / F / M / C / EC |
| Applicable Models | GP100 - GP550 / GP220 - GP330 |
| Compatible Brands | Metso Nordberg Compatible |
| Customization | Available against Sample or Part Number Drawings |
| Weight Range | 200 kg - 4500 kg |
| Service Life | 1200-4000 hours |
| MOQ | 1 Piece |
Product Description

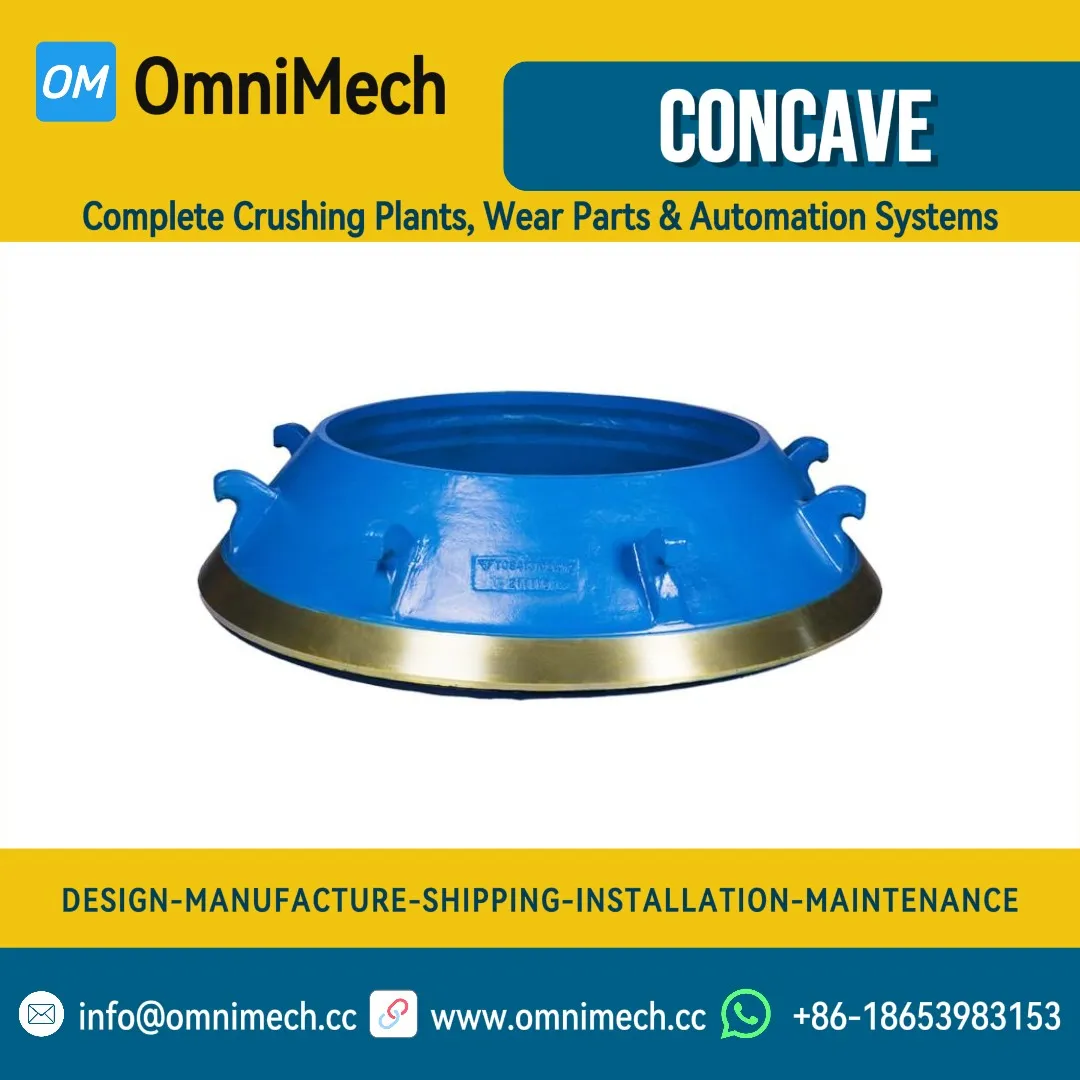

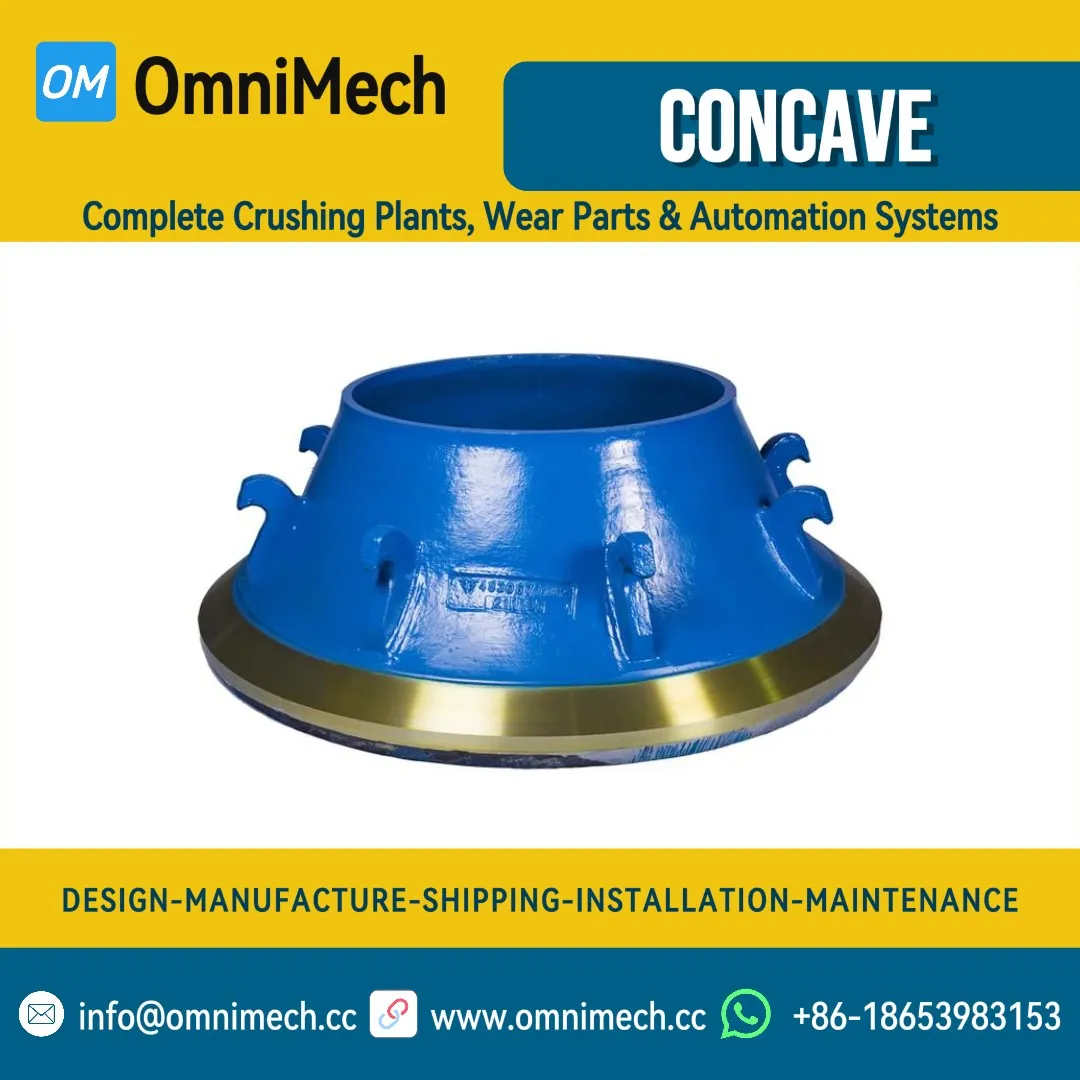

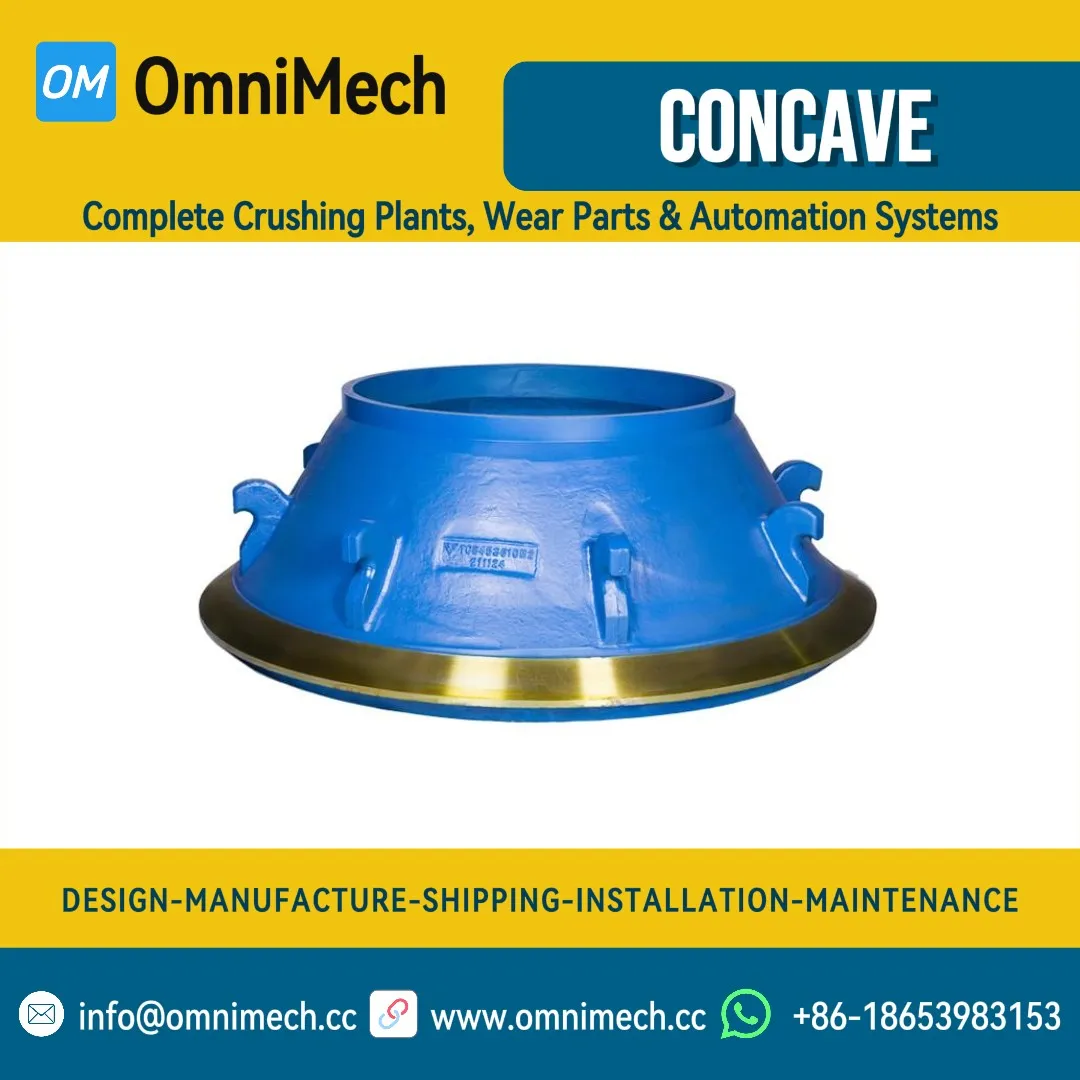

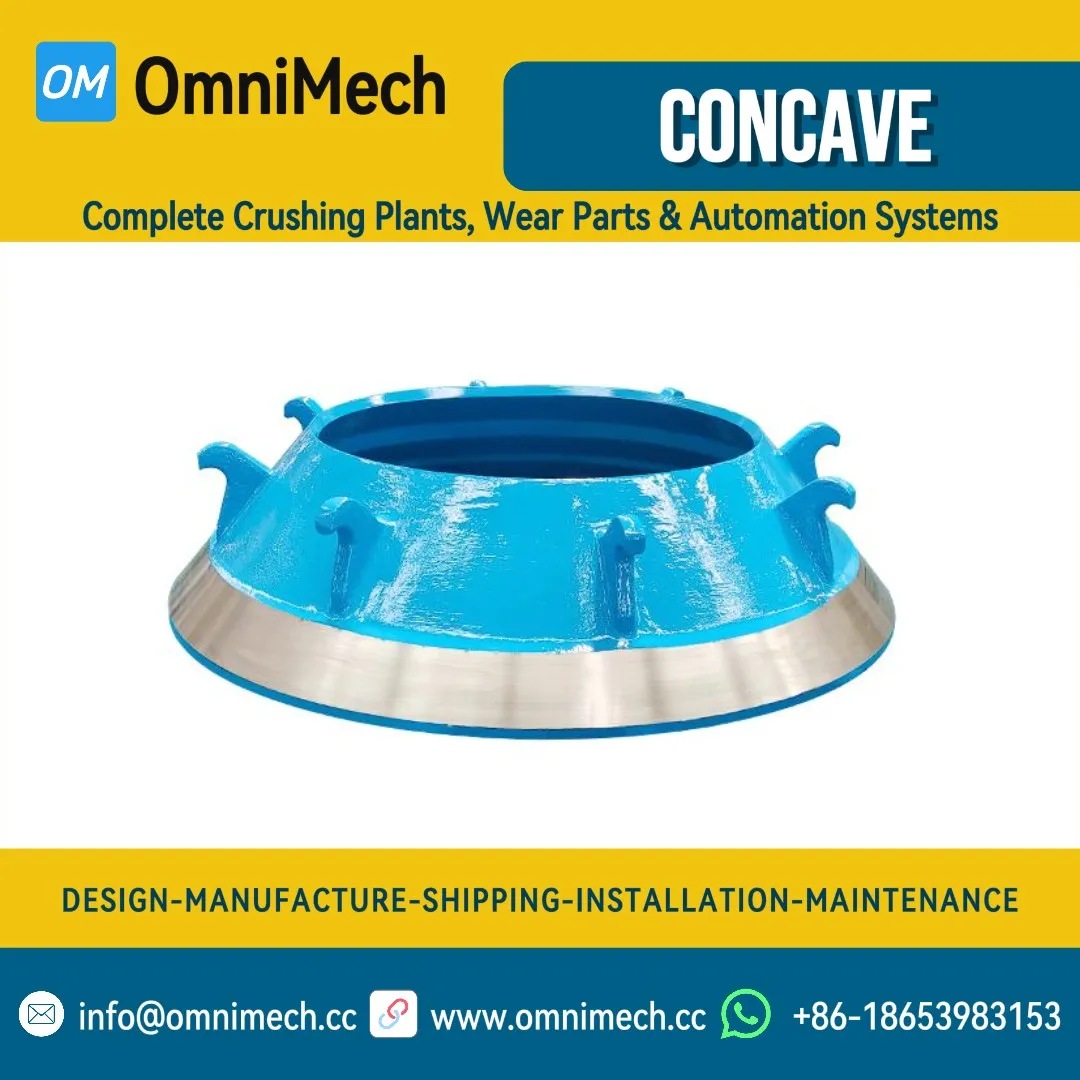

The Concave (or bowl liner) forms the stationary crushing surface in the GP cone crusher chamber. Engineered with customized manganese profiles, our concaves optimize the crushing cavity geometry, reducing power consumption and wear velocity.
Key Features:
- Advanced Mn18Cr2 and Mn22Cr2 metallurgy for high abrasive resistance
- Optimized profiles matching standard and short-head GP configurations
- Computer-modeled design for even wear distribution
Applications:
- GP100, GP200, GP300, GP500, GP550
- GP11F, GP220, GP330, GP500S
